2" - 2.5" Plumbing! For concrete/plaster pools!
Skim-Master is a versatile, large capacity, automatic surface skimmer for residential or commercial gunite pools. It features durable corrosion-proof, unibody construction, adjustable deck collar and access cover, self-adjusting 8 in. weir, large debris basket and multiple plumbing connections for easier installation. Float valve is optional.

Brand0Goulds
Mfg. Number0HSC30
Series0HSC
Product Type0Centrifugal pump
Application0Water circulation/Booster
Horsepower 03 HP
Voltage0230 volts
Phase01
Stages03
Frequency060 Hz
Speed03500 RPM
Design0Multi-stage/Close coupled
Suction Connection01-1/4"
Discharge Connection01"
Maximum Capacity054 GPM
Maximum Head0230 ft.
Impeller Material0Glass-filled thermoplastic
Motor Shaft Material0Stainless steel
Rotation0Clockwise viewed from motor end
Enclosure0ODP
Overload Protection0Yes
Pressures0100 PSI (230ft.)
Max. Working Pressure0125 PSI
Max. Temperature (Continuous)01800F

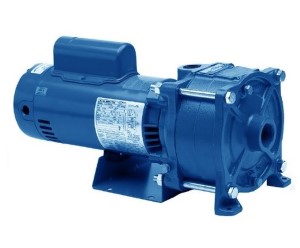

This pump is specifically designed to deliver high capacities at greater pressures. It can be used on shallow or deep well applications using appropriate Goulds Water Technology fittings. This pump is easy to service as it can be taken apart just by removing four bolts.
Brand: Goulds
Mfg. Number: HSJ10N
Series: HSJ
Product Type: Convertible jet pump
Application: Shallow or deep well
Horsepower: 1 HP
Voltage: 115/230 Volts
Phase: 1
Stages: 2
Frequency: 60 Hz
Speed: 3500 rpm
Suction Connection: 1-1/4" NPT
Discharge Connection: 1" NPT
Drive (Pressure) Connection: 1" NPT
Flow at 5 ft (30 psi): 22.8 gpm
Flow at 10 ft (30 psi): 20.7 gpm
Flow at 15 ft (30 psi): 18 gpm
Flow at 20 ft (30 psi): 14.5 gpm
Flow at 25 ft (30 psi): 11.5 gpm
Maximum Shut Off Pressure: 79 psi
Impeller Material: Glass filled thermoplastic
Thermal Protection: Yes
Maximum Temperature: 1400F
Length: 16"
Width: 8"
Height: 9

The multi-stage convertible jet pump is specifically designed to deliver high capacities at greater pressure. HSJ pumps are easily serviceable. They can be taken apart by removing four bolts. The Stainless steel pump shaft hex design provides positive drive for impellers and eliminates clearance adjustments. The HSJ is designed for use on shallow or deep well applications using appropriate GouldsWater Technology fittings. The HSJ Pump is specifically designed for homes, farms, cottages, and booster systems.


Specifications:
- Horsepower: 1 1/2
- Phase: Single
- Volts: 115/230
- Pipe Connections: 1-1/4" Suction, 1" discharge

PUMP GOULDS W/O KIT 2 HP

1 HP SHALLOW WELL JET PUMP GOULD

1-1/2 HP SHALLOW WELL JET PUMP G

1/2HP SHALLOW WELL JET GOULDS

3/4 HP SHALLOW WELL JET PUMP GOU

Features:

Connections: - for 25mm (1") bore hose
Dimensions: - 250mm long, 170mm wide, 120mm high, with 260mm handle (nominal dimensions for variable pump configuration)
Output: - up to 45 litres/minute (10 gallons/minute)
For surface mounting on bulkhead or deck.
Light compact pump.
Ports and bodies can be positioned in 96 different ways for maximum flexibility of installation.
Stainless steel handle with bulkhead clips.
Self-priming up to 4m.
Packaged Dimensions: L:23.00 x H:16.00 x W:21.00cm
Actual Weight: 0.96 Kg (Approx. 1.26 Kg packed)

The Goulds LB0512 booster pump can achieve up to 20 GPM at 3500 RPM, and is perfect for use at your car or pressure washing business. It has a single phase, 0.5 HP motor and open drip proof motor enclosure design. A 115/230 volt electrical connection is required for operation.

Part of the LB series
Maximum flow: 20 GPM
Maximum pressure: 85 PSIG
Maximum speed: 3500 RPM
Maximum temperature: 140? F
0.5 HP, 60 Hz
Single phase
4.5" Noryl impeller
Open drip proof motor enclosure
Stainless steel casing
115/230 volts
Suction: 1.25" NPT
Discharge: 1" NPT
Heads to 190 feet
Goulds item #LB0512

3/4HP PUMP GOULDS

PUMP SUB GOULDS S.STEEL LSP0311A

3/4 HP SUB PUMP 110V

Goulds M20412 CentriPro 4" Motor Generation 1 Series Three-Wire Motor

This copper wound 4" submersible motor is designed and sized for the installation in 4 inch diameter or larger water wells. This three wire motor has a capacitor start induction run design and requires a control box with a starting relay and capacitor.

Features

Stainless steel casing and upper and lower end bells
Three-shoe Kingsbury thrust bearing
Stainless steel, 17-4 PH splined shaft
Removable, replaceable 48 inch motor lead held in place by (2) screws for controlled compression
Built-in check valve allows well water to enter motor as needed
Surge arrestors built-in
CSA Certified, tested to ANSI/NSF 61
NEMA Mounting Dimensions
Please note that this 3-wire motor requires a control box

Control Panel Options

Below are Goulds control panels that can be used with this motor:
CB20412CR
CB20412MC

Specifications:

Brand: Goulds
Mfg. Number: M20412
Product Type: Motor
Application: Water systems
Horsepower: 2 HP
Voltage: 230 Volts
Phase: 1
Power: 1.5 kW
Frequency: 60 Hz
Service Factor: 1.25
Locked Rotor Amps: 49
Main Winding Resistance: 1.6-2.2 Ohms
Start Winding Resistance: 4.8-5.9 Ohms
Thrust Rating: 900
Rotation: Counterclockwise
Standard Control Box: CB20412CR
Deluxe Control Box ( Mag Contactor): CB20412MC
Design: Water lubricated
Construction Material: 304 Stainless steel construction
Shaft Material: 17-4 PH splined stainless steel
Motor Type: 3 Wire
Max Water Temperature: 86?F
Length: 15.1"
